AW109 GRAND NEW

The AW109SP ‘Grand New’ is the latest incarnation of the very popular AW109 series. Building on the 109 ‘S’, the SP introduces an all new avionics suite including an integrated FMS and a 4 axis autopilot, culminating in its certification as a PBN compliant aircraft. Without doubt, the SP is one of the most capable & high-speed corporate helicopters available in its class.”

Spec Download

Price

Price on request

Specification

Year: 2012
Price: Price on request
Serial Number: 22282
Registration: M-INES
Condition: Excellent 'As New' - New Exterior Paint 2021 - Interior fully refurbished in 2021 & Seat leather restored in 2026.
Total Time: 1912 Hrs
Airframe Landings: 0
Maintenance: Excellent

Performance

Crew: 1
Max Passengers: 7
Max Take-Off Weight: 3175 KG
Cruise Speed: 155 Knots
Max Range: 450 NM
Max Altitude: 19000 FT
Take-Off Distance: N/A FT
Landing Distance: N/A FT

Power

Engines: 2 x Pratt & Whitney PW207C
Engine Hours: 1912
APU: Not Available
APU Hours: 0 Hrs

Exterior

Exterior: Exterior paint is overall metallic grey and metallic blue – completed 2021

Interior

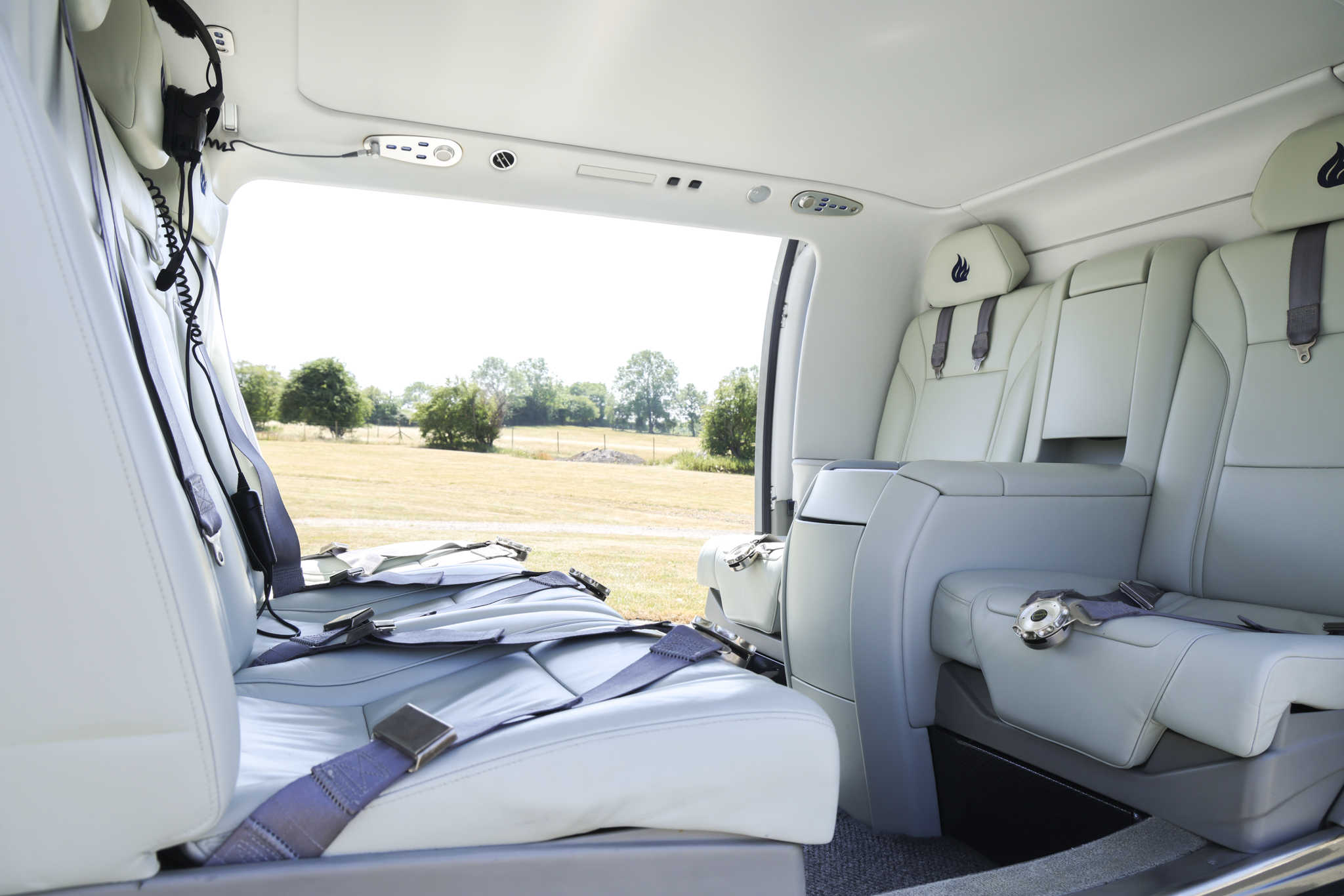

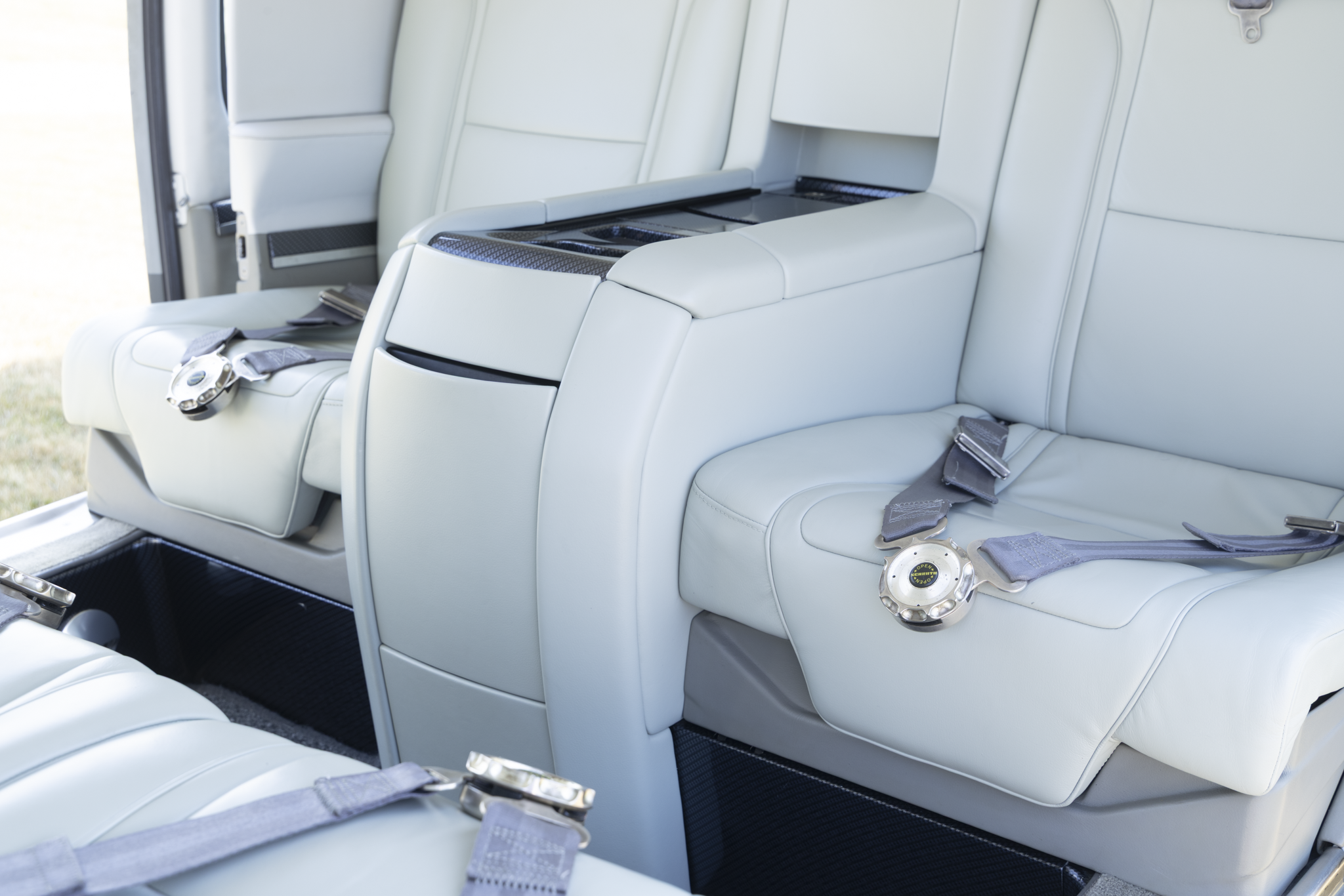

Interior: Fully refurbished in 2021 – seat leather restored in 2026 — Factory installed interior items include: — "VIP" corporate 5-place interior with leather seating including a refreshment console, and 2-place leather crew Seating in the flight deck area. — "Super Silent " soundproofing Passive vibration absorber — Four -point shoulder harnesses with crash-resistant seats — Additional items: — Passenger and crew intercom system with f ive act ive noi se cancel ing headset s — Under -seat Ref r igerator Drawer Assy - 109G2520F08105V282 — 2 x double USB charging points in cabin

Avionics

Standard Avionic Equipment: -
Additional Avionic Equipment: Dual Controls — 4-Axis Duplex Automatic Flight Control System w/ Flt Dir (Agusta Westland Flight Management System) — Moving Map MFD (Jeppesen Navigation, Obstacle and Terrain database with Weather Radar, Stormscope and Synthetic Vision overlay) — Dual AHRS (Attitude Heading Reference System) Dual PILOT/COPILOT EFIS (Chelton Genesys) Dual GPS receivers — Dual VHF Comm (Collins VHF -4000E) Dual VHF Nav (Collins VOR/ILS NAV-4500) — Dual Radio Management System (Collins RTU-4210) DME (Collins DME42) — Dual Air Data Units (ADU AC32.1O.21.10 AU/AW) — Weather Radar (Honeywell RDR 2000) — Storm Scope (L -3 Communications WX500) Transponder (Mode S and ADS -B) (Collins TDR-94) Radio Altimeter (Collins ALT -4000) — ELT (Artex C406-N HM) — Dual Standby Compass — Traffic Avoidance System (Ryan International Avidyne TAS 620) — Broadcast Receiver (Avidyne MLB-700) Satellite Phone (Aircell ST 3100) — Dual ICS Audio Management System (NAT AA95-840) Dual Chronometers (Astrotech LC-2)

Specifications and details are subject to verification upon inspection. Aircraft is offered subject to prior sale or withdrawal from the market.
